Sound Barriers (also known as Noise Walls, Noise Barriers, Noise Fences or Sound Barrier Walls) have been made of a number of different materials over the years. Noise barriers are solid obstructions built between noise sources, be it highway noise or air conditioning equipment,that are designed to be “line of sight” interruptions between the noise source and the receiver.
Sound Barrier Material:
Metal type: Galvanized metal sheet, aluminum sheet.
Appearance: shutter type, perforated type.
Colors: Clear, lake blue, green, blue, opal, brown, silvery gray, red (Other colors can be ordered according to request
Transparent sheet: PC, PMMA
Product name: Soundproof Fenc
Sound Barrier Specifications:
|
METAL SHEET |
|||||||
|
PANEL HEIGHT |
PANEL LEHGTH |
SHEET THICKNESS |
SHEET THICKNESS |
PANEL TYPE |
|||
|
0.5m 1.0m |
2.0m 2.5m 3.0m 4.0m |
80mm 100mm |
1.0-1.5mm |
shutter or perforated |
|||
|
PC/PMMA SHEET |
|||||||
|
PANEL HEIGHT |
HEIGHT |
SHEET THINCKNESS |
LIGHT TRANSMITTANCE |
||||
|
0.5m 1.0m 1.5m |
2.0m 2.5m 3.0m 4.0m |
80mm 100mm |
≥80% |
||||
|
SOUND BARRIER |
|||||||
|
TOTAL HEIGHT |
LENGTH |
RW |
NRC |
||||
|
3.0m as standard |
2.0m 2.5m 3.0m 4.0m |
≥30dB |
≥0.84
|
||||
Shippment information: 600-800 square meter sound barriers per 40ft container
Sizes or specifications vary with different packings.
Shippment information:600 square meter per 40ft container.
2.Detailed Description
1. Non-Flammability: GB8624 grade A
2. Waterproof :Resistant to deformation in wet environments
3. Sound proof:
4. Strength: Bendable and impact resistant
5. Weight: 35kg/m2
6. Temperature Maintenance
7. Environmental Friendly;
8. Installation: Easy to cut, saw, nail, paint and veneer
Noise barrier Panel thickness: 80mm, 100mm,120mm
Noise barrier Size: 2500x500x80mm, 2500x500x100mm, etc.
Noise barrier Metal plate thickness: 0.5-1.2mm
Noise barrier H-post: 100x100x6x8mm, 125x125x6.5x9mm, 150x150x7x10mm, 175x175x7.5x11mm.
Noise barrier Flange plate: 250x250x10, 300x300x10, 350x350x10, 400x400x10mm etc.
Noise barrier Panel type: shutter type, punching type.

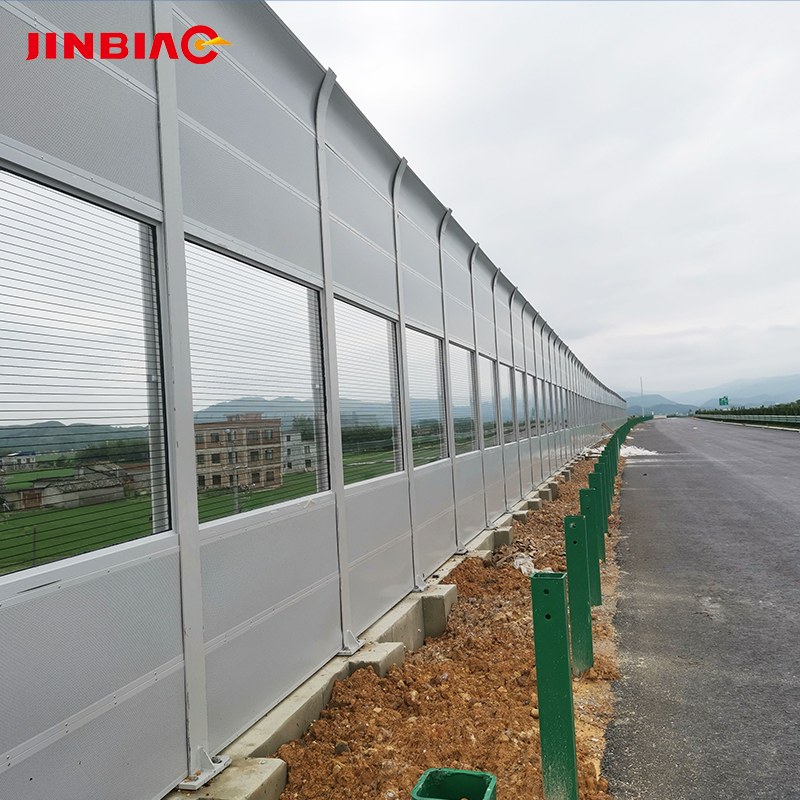

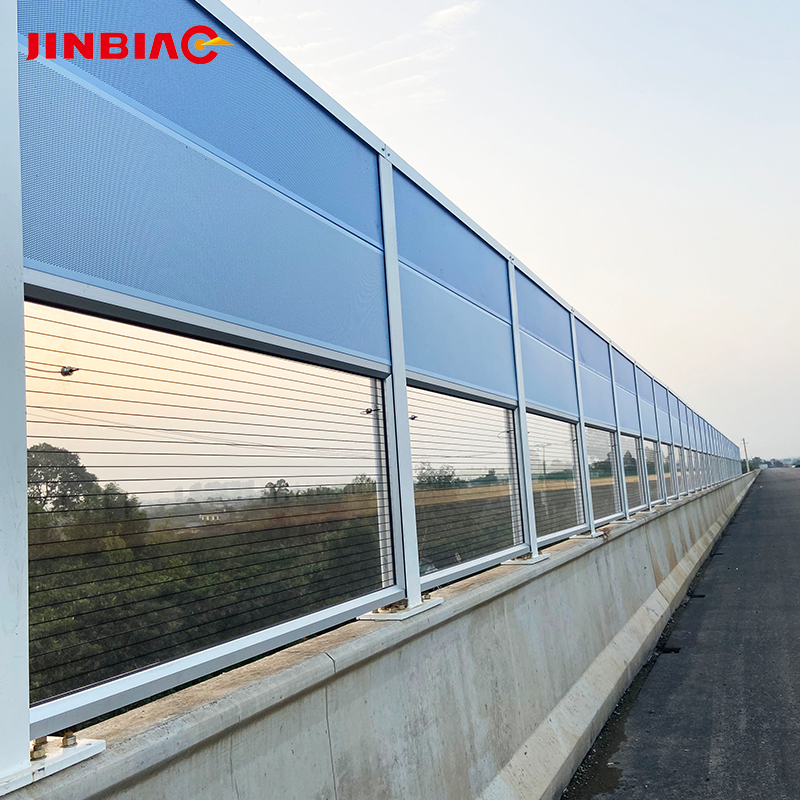

Some transportation noise barrier applications include:
> Highways and Bridges
> Structure-Mounted
> Railroads
> Distribution Facilities
> Transit Hubs / Intermodal
> Airports
| Sound Barrier for Industrial Infrastructure |
| > Some industrial noise barrier applications include:> Manufacturing Plants> Equipment Enclosures
> Perimeter Walls > Roof-Top HVAC Barriers > Generator Surrounds |
| Sound Barrier for Municipal Infrastructure |
| > Some municipal noise barrier applications include:> Light Rail Transit > Waste Water Treatment Plants
> Pump Stations > Schools > Equipment Barriers > Roof-Top Equipment Enclosures |
FAQ
1.What is a highway acoustic barrier and how does it reduce traffic noise?
A roadside structure placed between the traffic and the receiver that blocks the direct sound path, absorbs or reflects energy at its surface, and forces sound to travel a longer diffracted path over the top.
2.What insertion loss can be expected from a highway barrier?
Achievable insertion loss depends on barrier height, distance, terrain and source spectrum; performance is normally verified by calculation (for example ISO 9613-2) and stated as D_LR per EN 1793-2.
3.How is barrier height decided for a highway project?
Height is derived from the source-to-receiver geometry and the required reduction at the nearest sensitive receptor, then checked against structural and sight-distance constraints.
4.Should a highway barrier be absorptive?
Absorptive facings are usually preferred where barriers face each other or where a sensitive receptor sits opposite the barrier, because they limit the build-up of reflected noise.
